Rapid Roll Up Door

Rapid Roll Up Door
Rapid Roll Up Door
Product Code : 19
Product Description

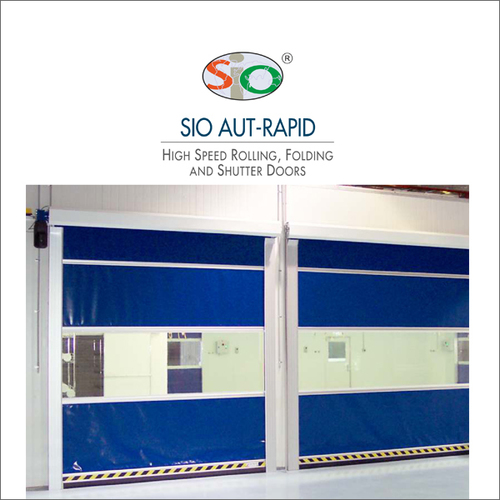

Right from the opening speed to the dimensional accuracy, our Rapid Roll Up Door stands tall in terms of striking features. It is made of fiber reinforced plastic and is available in 15 standard colors. The power supply and the ambient temperature is also balanced as per the requirement of work. In case of emergency, the door stops via stop button that is handled with the help of a remote control. Apart from this, the rapid roll up door has motion detector feature along-with a photo cell and switch. In addition, the roll up door offered by us is fully automatic in function.

Drive Dimensions
H x D : 236 mm x 300 mm

Frame Dimensions
W x D : 127.5 mm x 70 mm

Maximum Dimensions
H x D : 3000 mm x 3000 mm

Opening Speed
up to 2.5 m/s

Shutter Materials

  • Fibre-reinforced plastic, 670 g/m2,
  • available in 15 standard colors, printed
  • or with transparent area if required

Power Supply
230 V AC / 50 / 60 Hz

Rated Power
140 W

Ambient Temperature
+3°C to 50°C

Emergency stop via emergency stop button, remote control unit BDE-D

Trigger Options
Motion detector, photo cell, switch etc.

Manual Opening
Hand wheel, hand crank or USV in case of power failures

Operating Modes
Automatic ; Continuously open/manual ; One-way traffic ; Locked

Other Equipment Available
During power failures emergency opening using hand crank or integrated USV Interlock control consisting of two rapid shutter doors placed in succession.
