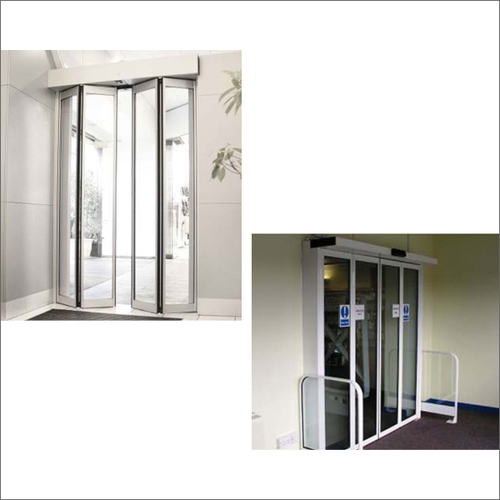

Automatic Folding Door
Product Details:
X
Product Description
In order to meet the diverse requirements of clients, we are engaged in providing a broad array of SIO Automated Folding Door. This can be retrofitted relatively easily and are designed to work particularly well when fitted in corridors. Depending on the total width available, the folding door is built as one- or two-sided. This SIO Automated Folding Door is ideal for narrow passageways in restaurants, hotels, business headquarters, hospitals and elderly people’s homes.
Technical Specifications
Basic Data
| Opening width (A) | 800 - 2000 mm |
| Door leaf weight max | 2 x 40 kg or 4x 40 kg |
| Door operating speed | 0.7 m/s |
| Height of passage (G) | Up to 2500 mm |
| Operating housing D x H dimension | 240 x 180 mm |
| Power supply | 100-240 V AC, 50/60 Hz, 9OW |
| Ambient temperature | -15°C to +50°C |
| Trigger devices | Radar / infrared detectors, switch etc. |
| Basic Functions | Automatic Operation |
| On Way Traffic | |
| Continuously Open | |
| Manual Control | |
| Interlock Function | |
| Operating Lock | |
| Automatic Reverse | |
| Options | Interlock Control |
| Emergency Cut-Off Function | |
| Remote Control And Surveillance | |
| Night Control | |
| Bell Option | |
| Door Leaf Surveillance | |
| Key Operated Contact (SSK) | |
| Module For Extended Functionality (FEM) | |
| Assembly variants | Wall or beam assembly |
